2D AOI- Otomatik Optik Kontrol Sistemleri, Baskılı Devre lehim-komponent kontrolü
CyberOptics elektronik devrelerin lehim öncesi ve sonrası 2 boyutlu otomatik optik kontrolü için çeşitli cihazlar sunmaktadır. Tüm modeller; hat üzeri otomatik veya masa üstü tip olsun aynı optik ve temel kontrol özellikleri ile aynı hıza sahiptir. Tüm modeller SAM (İstatiksel Görüntü Modelleme - Statistical Appearance Modeling) ve AI² (Otonom Görüntü Yorumlama - Autonomous Image Interpretation- opsiyonel) programlama ve analiz yazılımlarına sahiptir. SAM ve AI² ile kolay programlama yapılabilir; çok az gerçek olmayan hata (False Call) ve sıfır hatalı kaçırma (False accept) elde edilir.

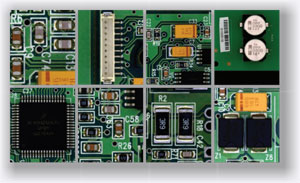

Neden CyberOptics 2D AOI?
Otomatik Lehim ve Komponent kontrolü için 3 temel unsur vardır:
- Görüntünün alınması
- Programlama
- Analiz ve sonuç bildirmedevamını oku
 |
 |
 |
 |
 |
|
| Model | QX 600 | QX500 | QX150i | QX150 | QX250i |
| Tarama Hızı | 200 cm²/sec (31 in.2/sec) | 200 cm²/sec (31 in.2/sec) | 150 cm²/sec (23.25 in.2/sec) | 150 cm²/sec (23.25 in.2/sec) | 110 cm²/sec (23.25 in.2/sec) |
| Minimum Komponent Boyu | 0402 mm (01005 in.) | 0402 mm (01005 in.) | 0402 mm (01005 in.) | 0402 mm (01005 in.) | 0402 mm (01005 in.) |
| Board Genişliği | 50 mm to 308 mm (2.0 in. to 12.0 in.); L size: 50 mm to 590 mm (2.0 in. to 23.2 in.) | 50 mm to 308 mm (2.0 in. to 12.0 in.); L size: 50 mm to 510 mm (2.0 in. to 23.2 in.) | Min. 50 mm (2 in.) / Max 457 mm (18 in.) | Min. 50 mm (2 in.) / Max 330 mm (18 in.) | 50 mm to 405 mm (2.0 in. to 12.0 in.); |
| Board Uzunluğu | 50 mm to 457mm† (2.0 in. to 18.0 in.); L size: 50 mm to 510 mm (2.0 in. to 20.0 in.) | 50 mm to 457mm† (2.0 in. to 18.0 in.); L size: 50 mm to 510 mm (2.0 in. to 20.0 in.) | Min: 50 mm (2 in.) / Max 308 mm (12 in.) | Min. 50 mm (2 in.) / Max 320 mm (18 in.) | 50 mm to 308 mm (2.0 in. to 12.0 in.); |
| Component Height Clearance (Max.) | 35 mm (1.378 in.) | 30 mm (1.18 in.) | 35 mm (1.378 in.) | 35 mm (1.378 in.) | 35 mm (1.378 in.) |
| Board Edge Clearance (Min.) | 2003.0 mm (0.125 in.), bottom side only | 2003.0 mm (0.125 in.), bottom side only | 2003.0 mm (0.125 in.), bottom side only | 2003.0 mm (0.125 in.), bottom side only | 2003.0 mm (0.125 in.), bottom side only |
| Gage R&R | <10% (down to 0402 mm components) | <10% (down to 0402 mm components) | <10% (down to 0402 mm components) | ||
| Optik Sistem | 80 Megapixel sensor | Multiple 5 Megapixel colour | 80 Megapixel sensor | 80 Megapixel sensor | 80 Megapixel sensor |
| Çözünürlük | 12 µm pixel size | 17 µm pixel size | 12 µm pixel size | 12 µm pixel size | 12 µm pixel size |
| Konveyör Yüksekliği | Adjustable to 832 – 990 mm (33 – 39 in.) | Adjustable to 832 – 990 mm (33 – 39 in.) | Adjustable to 832 – 990 mm (33 – 39 in.) | Adjustable to 832 – 990 mm (33 – 39 in.) | Adjustable to 835 – 990 mm (33 – 39 in.) |
| Bağlantılar | SMEMA, RS232 and Ethernet | SMEMA, RS232 and Ethernet | SMEMA, RS232 and Ethernet | SMEMA, RS232 and Ethernet | SMEMA, RS232 and Ethernet |
| Güç | 100-120VAC or 220-240VAC, 50/60Hz, 10 amp max. | 100-120VAC or 220-240VAC, 50/60Hz, 10 amp max. | 100-120VAC or 220-240VAC, 50/60Hz, 10 amp max. | 100-120VAC or 220-240VAC, 50/60Hz, 10 amp max. | 100-120VAC or 220-240VAC, 50/60Hz, 10 amp max. |
| Makine Ölçüleri | 100 x 127 x 139 cm | 100 x 127 x 139 cm | 100 x 88.6 x 132.1 cm | 867 x 756 x 622 mm | 100 x 104.7 x 124 cm |
| Ağırlık | 410 kg (904 lbs.) | 410 kg (904 lbs.) | 219 kg (483 lbs.) | 65 kg (143.3 lbs.) | 249 kgs (548.951 lbs.) |
| Opsiyonları | SPC Software, Offline Defect Rework Station, Sensor Alignment Target, Barcode Readers (1D/2D), High Speed PC Kit, Dual Side Inspection Kit, Right-to-left Configuration Kit | SPC Software, Offline Defect Rework Station, Sensor Alignment Target, Barcode Readers (1D/2D), Dual Monitör Kit, 300mm conveyör extansion kit | SPC Software, Offline Defect Rework Station, Sensor Alignment Target, Barcode Readers (1D/2D), Dual Side Inspection Kit, Right-to-left Configuration Kit | Barcode Reader, Rework station, SPC Software, Alignment Target, Light Curtain Sensor | SPC Software, Offline Defect Rework Station, Sensor Alignment Target, Barcode Readers (1D/2D) |
| Broşürler | Cyberoptics QX600 2D AOI Broşür | Cyberoptics QX500 2D AOI Broşür | Cyberoptics QX150i 2D AOI Broşür | Cyberoptics QX150 2D AOI Broşür | Cyberoptics QX250i 2D AOI Broşür |
